Perfect Volume

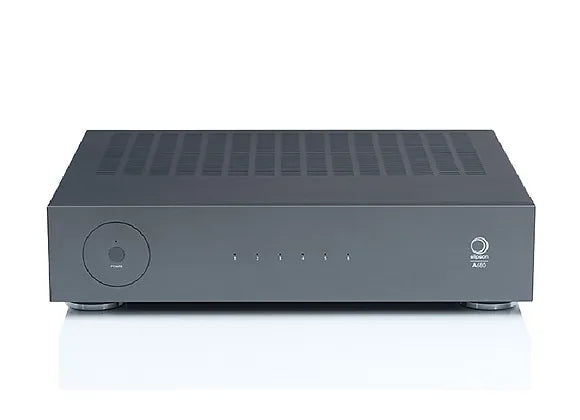

A680 Multi-channels amplifier

A680 Multi-channels amplifier

Rs. 130,000.00
Rs. 130,000.00
Sale Sold out
Shipping calculated at checkout.
View full details
  • Description
  • Specifications

6 channels - 3 in stereo (total power 480W @ 4 Ohms)

3 Zones2 Bus inputs

2 Bus outputs for connecting other A680 multi-channel amplifiers - Perfect flexibility for the audio input signals: Switch to select the common audio signal (Bus) or the individual stereo channel (line) of each zone

6 individual adjustments for the input voltage - Trigger mode / automatic mode / automatic standby mode

Stereo / bridge mode (up to 3 x 150 W @ 8 Ohms)

Type : Multi-channel power amplifier

Channels : 6 channels, 3 zones

Output Power : 80 watts / channel @ 4 Ohms

Bridge mode output power : 150 watts / channel @ 8 Ohms

Total harmonic distortion: <1% 1 kHz / 80 W / 4 Ohms

Channel Separation : > 65 dB / 1 kHz 4 Ohms Zone-Zone

Signal-to-noise ratio : > 90 dB (19V - A-weighting)

Frequency response : 20 Hz - 20 kHz (+/- 3 dB)

Trigger : 12V IN & OUT

Damping factor : > 55 (1 kHz)

Input impedance : > 20 k Ohms

Input voltage : AC 100 - 120 V 60 Hz / AC 220 - 240 V 50 Hz

Auto Switching

Certifications : CE, CB, NRT, FCC, CE-EMC, ERP

Dimensions : W430 x H88* x D335 mm

Weight : 9,5 kg
