Elipson Planet L Speaker

Elipson Planet L Speaker

Regular price Rs. 77,500.00
Regular price Sale price Rs. 77,500.00
Sale Sold out
Shipping calculated at checkout.
Color
Brand
View full details

Following in the Elipson tradition, the Planet L is a superb compact speaker with outstanding musical qualities inherent to its spherical shape.

The Planet L speaker is the fruit of two years of research in the field of state-of-the-art acoustic technologies with the aim of achieving excellent musical performance and a particularly attractive design featuring a stunning lacquer.

Equipped with a 17 cm coaxial midrange/low driver and a 25 mm dome tweeter, this bass-reflex speaker provides an exceptional listening experience from the very first notes of any song. Its meticulous construction (heavy and rigid for excellent inertia) ensures clean and muscular bass delivery. The Planet L offers an exceptionally neutral sound with remarkable coherence among the different timbres and registers (no excessive mids, highs or lows). The highs are soft and silky, the mids are full and sensual and the bass is ultra-responsive and tight. The Planet L strikes the right balance between high-definition and energy.

The stereo soundstage is wide thanks to the excellent directivity offered by the coaxial speaker. The optional mounts may be used to install the Planet L on a wall or ceiling.

  1. Speaker : Bookshelf
  2. Number of way : 2
  3. Tweeter : 0,7"
  4. Woofer : 4"
  5. Recommended amplifier : 30-80 W
  6. Frequency Response (±3 dB) : 90 Hz - 22 kHz
  7. Sensitivity : 88 dB / 1W / 1m
  8. Impedance : 8 Ohms
  9. Blindage : Magnetic
  10. Base : Amovible
  11. Weight : 2,25 kg

Type: 2-way Spherical Speaker – Bass-Reflex
Coaxial Performance Series Driver:

  • Midwoofer: 165 mm, cellulose pulp membrane with damping treatment
  • Tweeter: 25 mm treated silk dome, Neodymium magnet, horn driver for linear extension of high frequencies.
  • Peripheral Suspension: DAR® technology for perfect control under heavy demands.
  • D38 mm Kapton reel support for optimum cooling

Specifications

  • Power : 100 W RMS
  • Frequency Response: 46 Hz - 20 kHz (±3 dB)
  • Sensitivity: 90 dB / 1W / 1m
  • Nominal Impedance: 8 Ω
  • Recommended Amplifier Power: 30 - 120 W

Crossover

  • 18 dB/octave crossover with high-end components
  • Series capacitor: MKP Polypropylene film
  • Parallel capacitor: MKT Polyester film
  • Series inductor: Low internal resistance (DCR) – Diameter 1.2 & 1.0
  • Series resistor: Precision metal oxide layer
  • Internal Wiring: 2.25 mm² OFC

Bass-Reflex System

  • Tuned frequency: 50 Hz, matched to the speaker’s resonance frequency
  • Crossover frequency: 2900 Hz / 18 dB

Physical Specifications

  • Dimensions: Ø 290 mm
  • Net Weight: 7 kg (per unit)
  • Packaging: Sold in pairs

Available Finishes

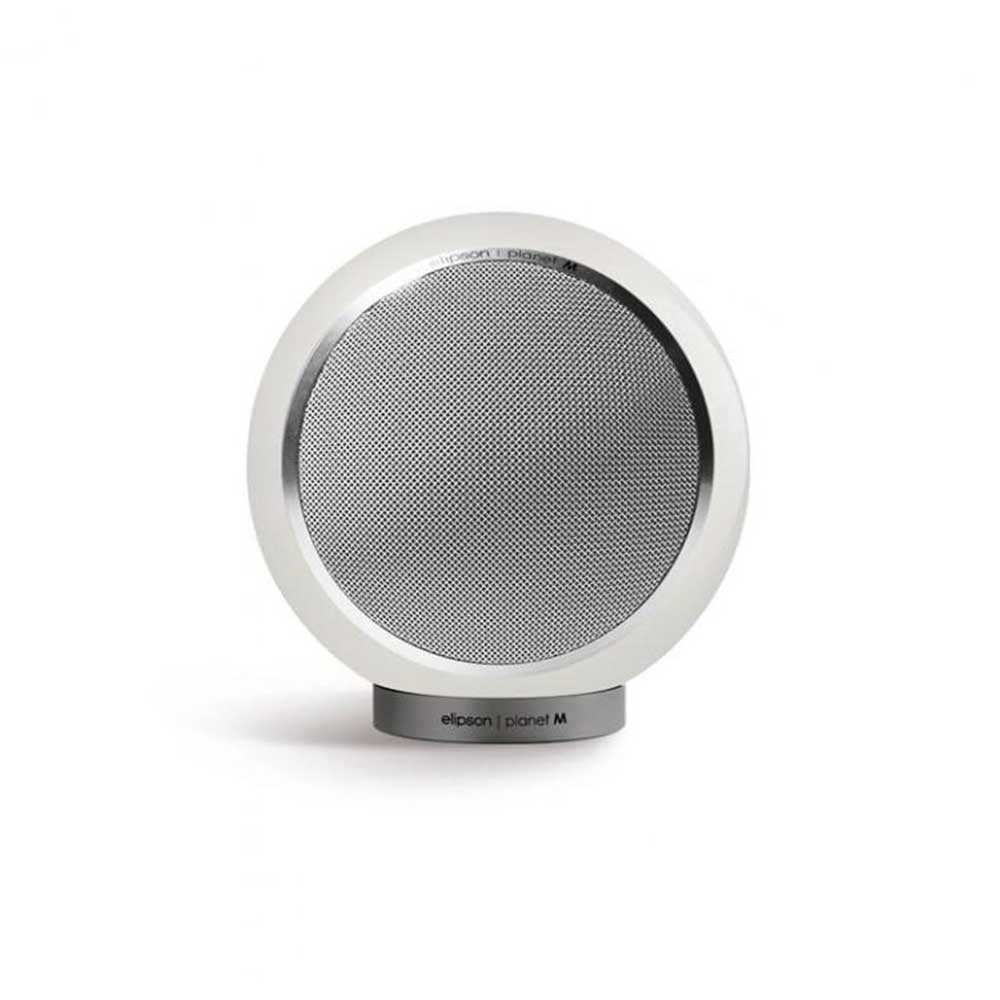

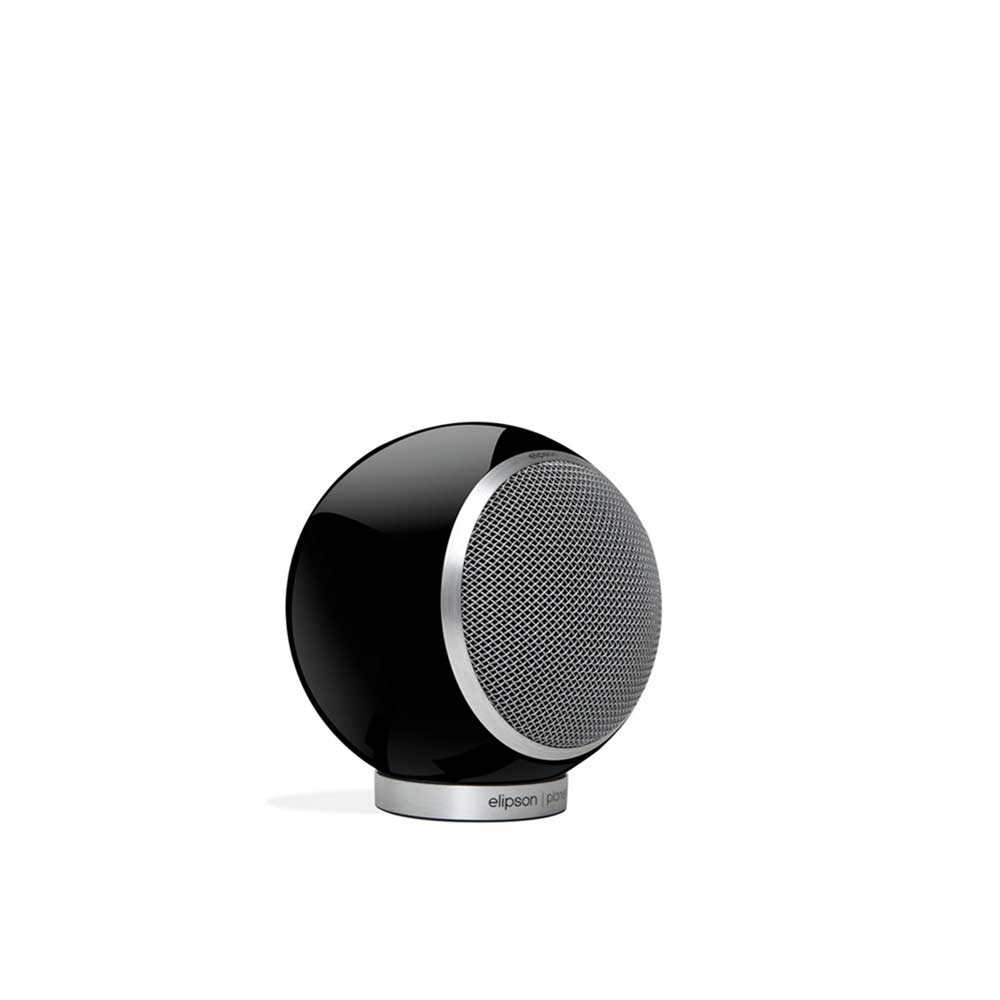

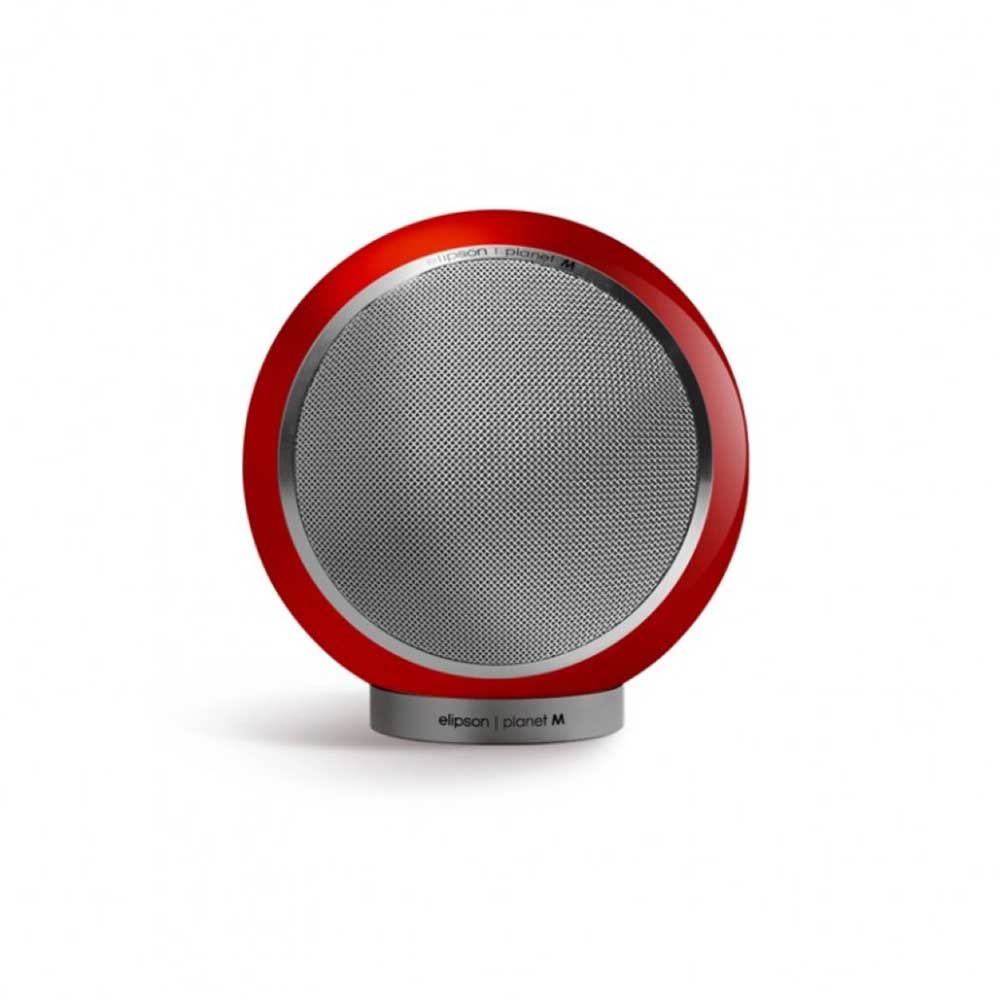

  • Glossy Lacquered: Black, White, Red

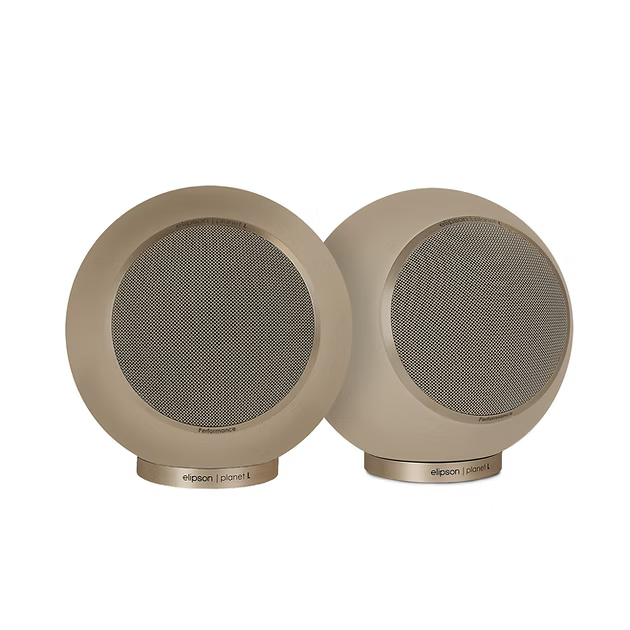

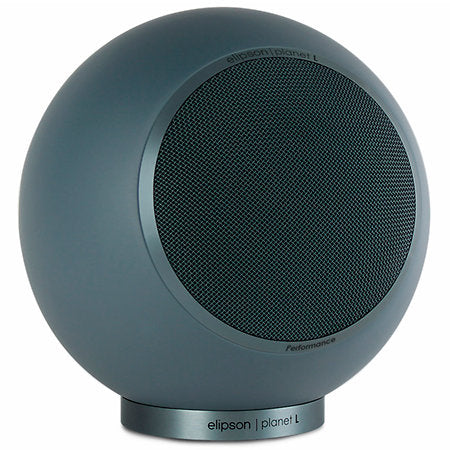

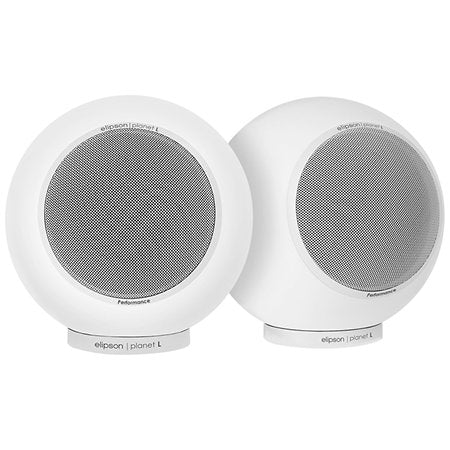

  • Satin: Matte Black, Matte White, Mineral Blue, Beige

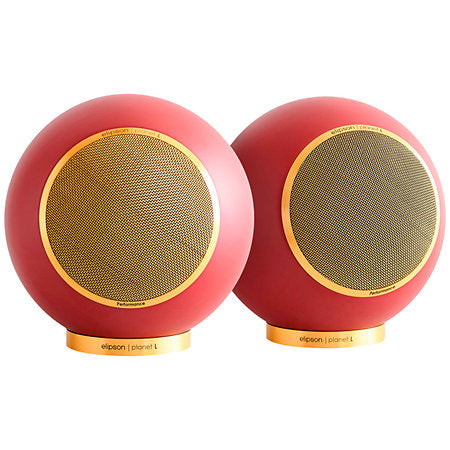

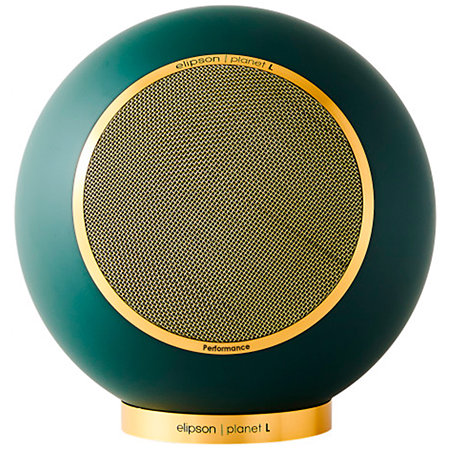

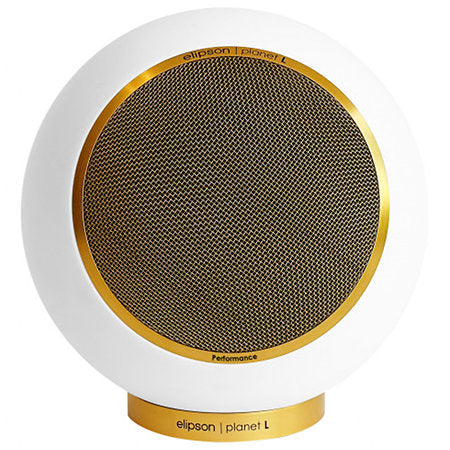

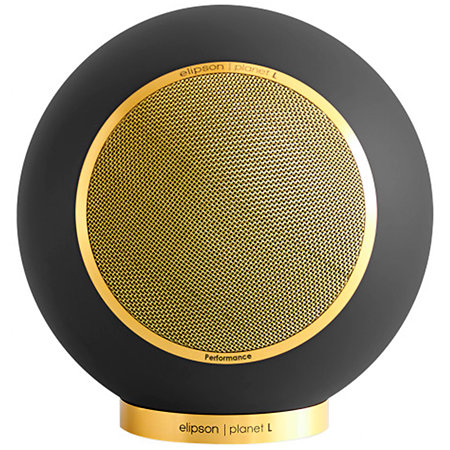

  • Satin Gold-Tinted: Bordeaux Gold, Dark Green Gold, Matte Black Gold, Matte White Gold

Accessory Compatibility WallmountDedicated speaker StandCeiling Mount
