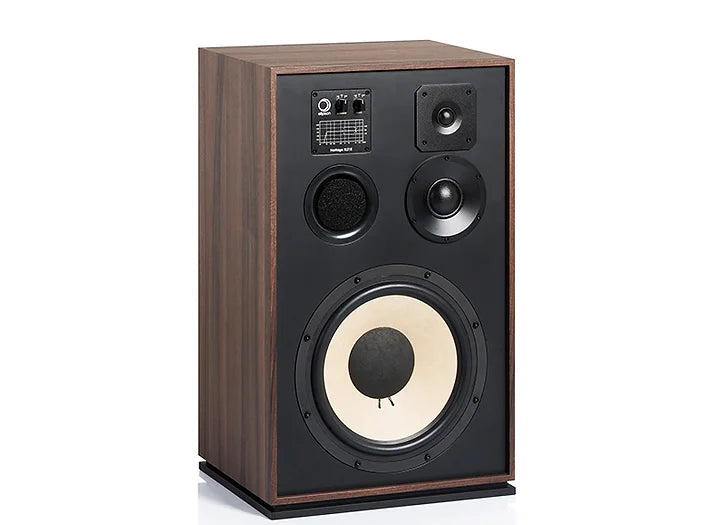

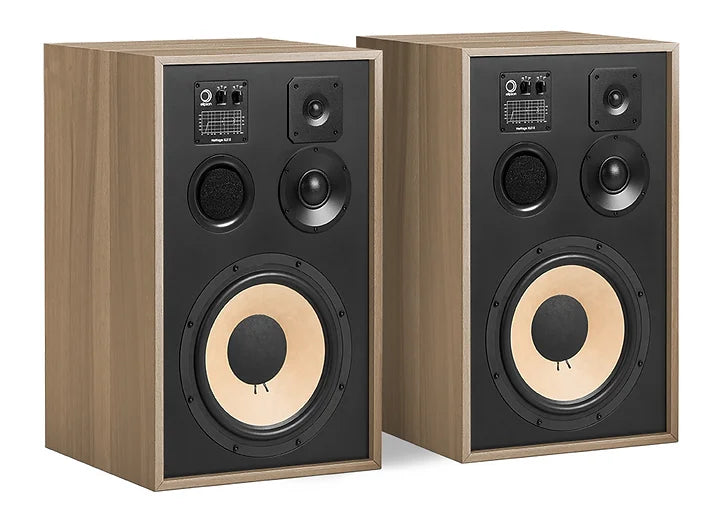

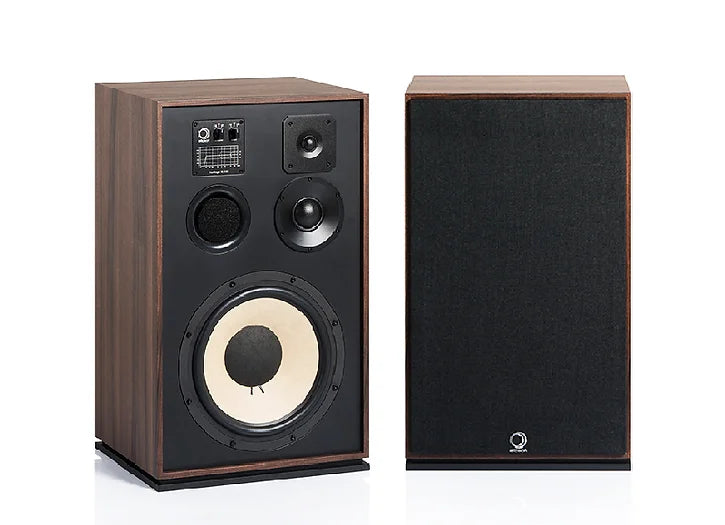

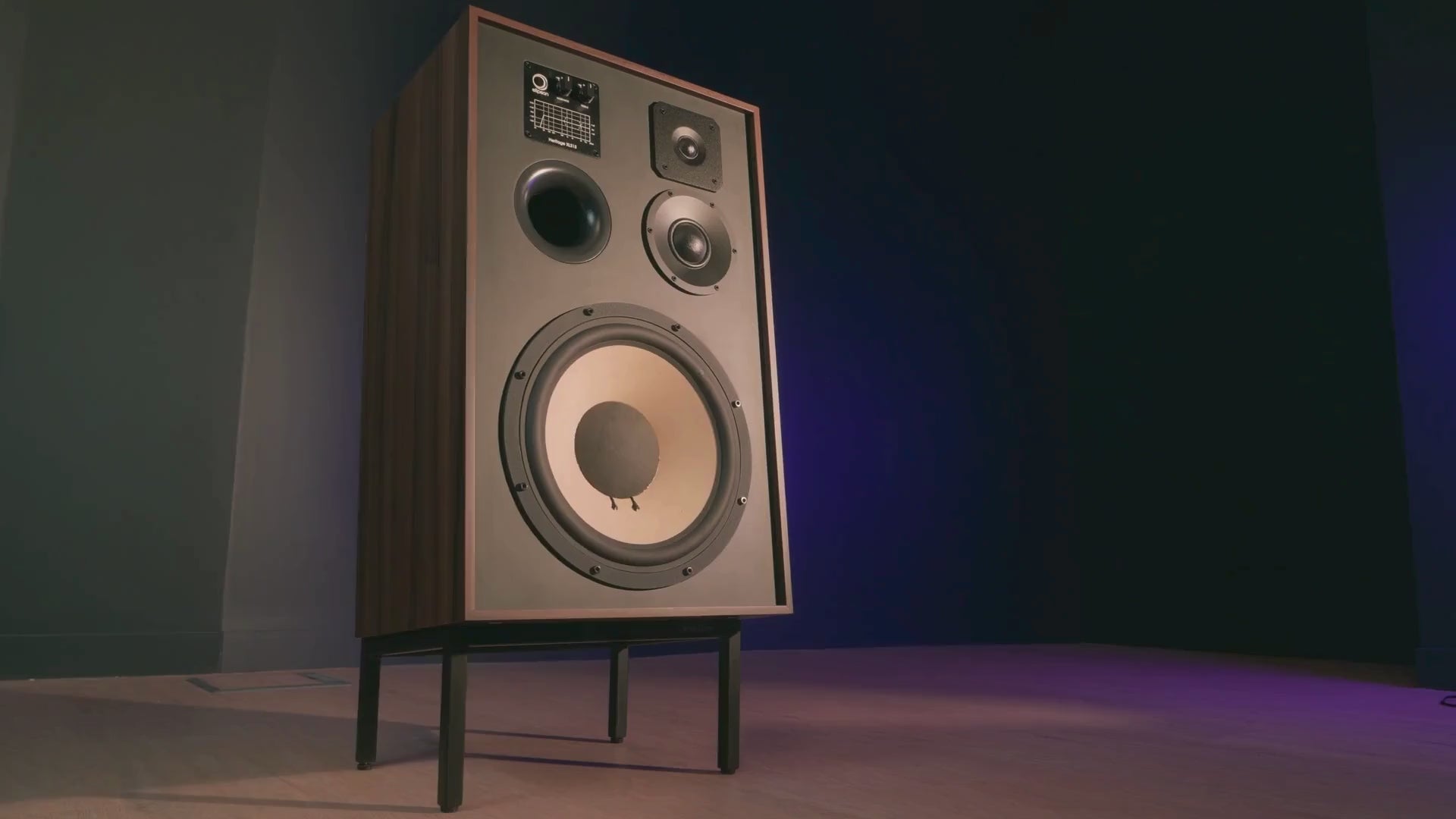

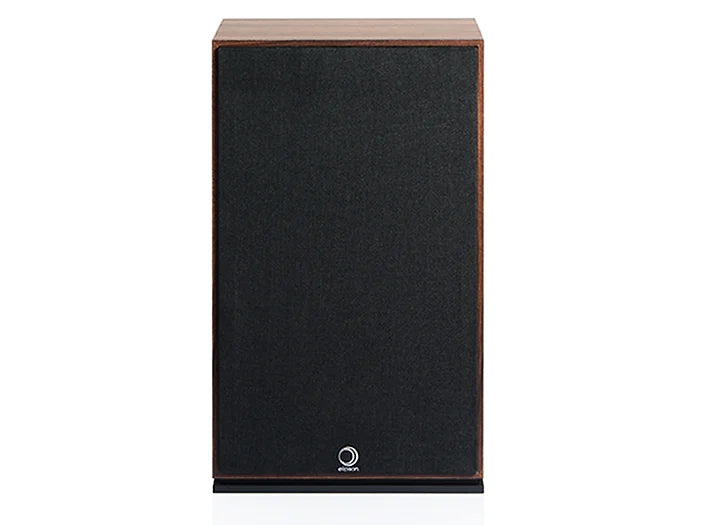

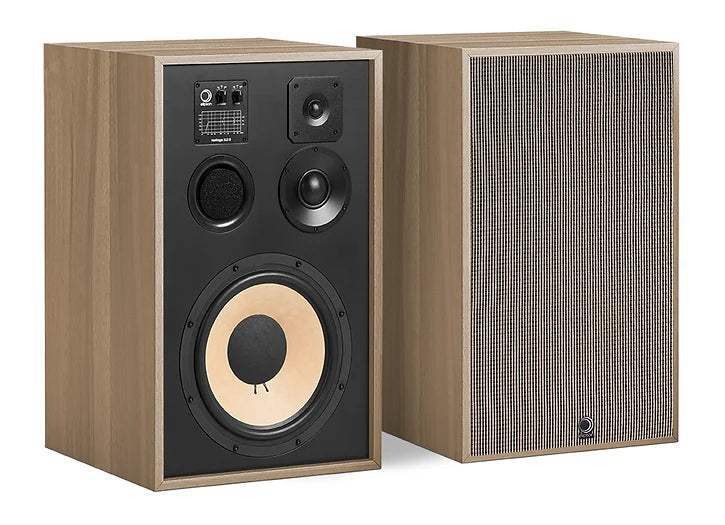

The Elipson Heritage XLS15 speaker stands out with its modular vintage aesthetic, offering real flexibility thanks to its two supplied bases. But beyond its appearance, it is its musicality that appeals.

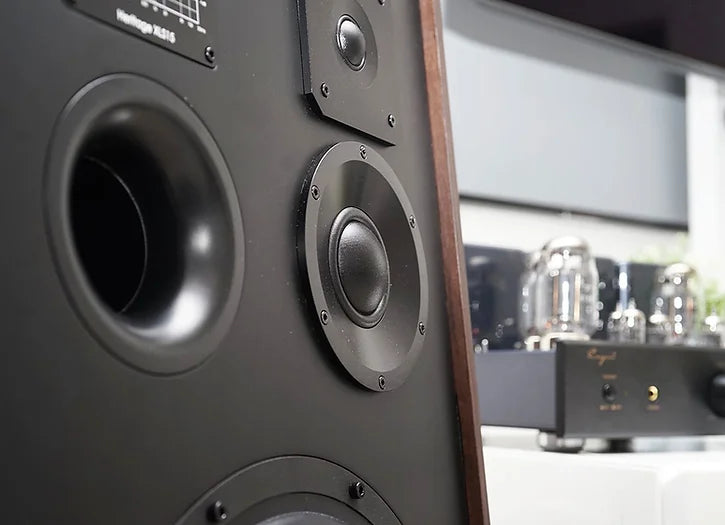

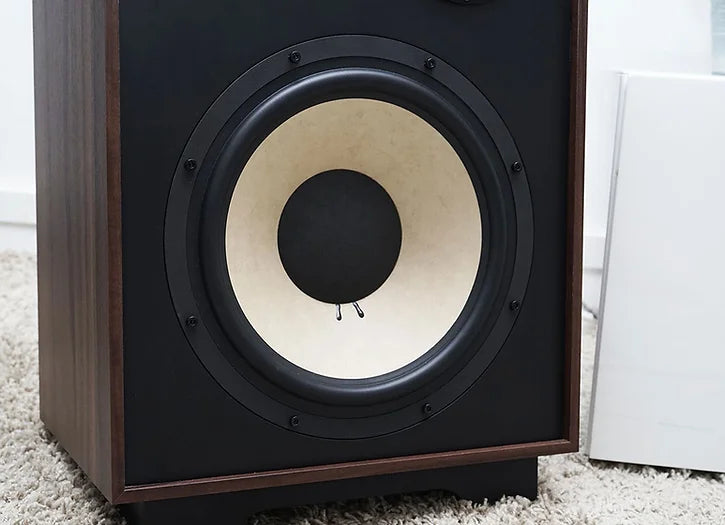

This 3-way model with compact dimensions and tuned front bass-reflex load benefits from a new 30 cm diameter cellulose bass speaker with a powerful magnetic assembly, a new 55 mm diameter treated dome midrange covering nearly three octaves and finally a 22 mm diameter silk dome tweeter derived from the famous tweeter equipping our flagship model of the Prestige Facet series.

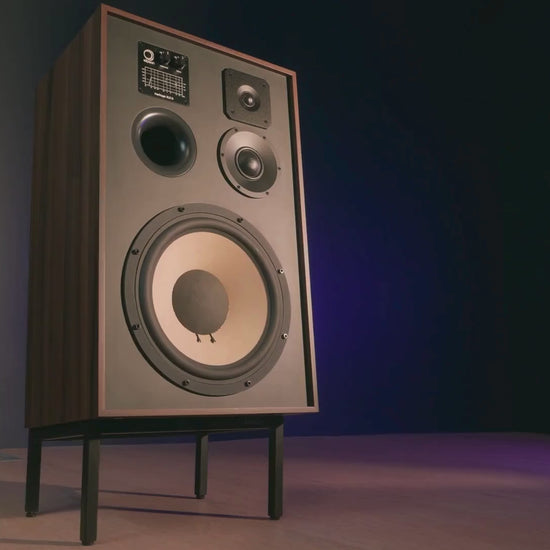

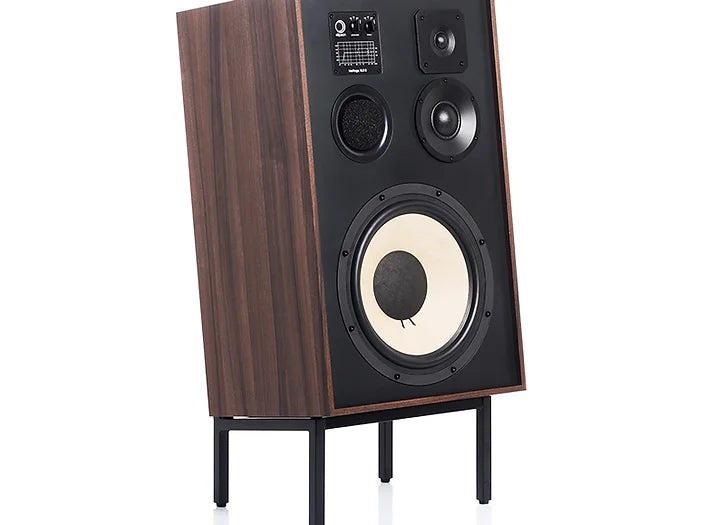

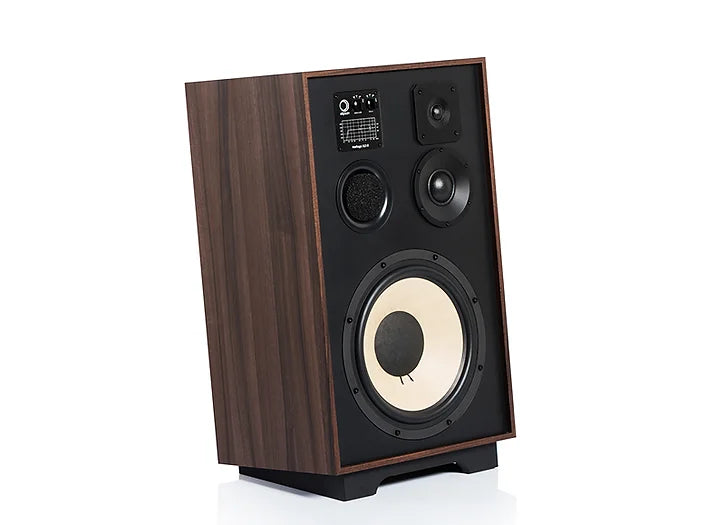

A fine amplitude adjustment of 2 dB allows you to adjust the midrange and treble registers according to your listening room or your hearing affinity. Added to this is the possibility of inserting a 7° inclined base (provided) for perfect acoustic phasing or on an optional metal foot which raises it by 19 cm in addition to this inclination.
Energy and control of the bass, definition and relief of the midrange, delicacy and extension of the treble register characterize the sound pleasure of this Elipson Heritage XLS15 speaker.
TECHNICAL | |
---|---|
Type | 3-way compact speaker |
Tweeter | 22mm silk dome |
Medium | 55 mm treated dome |
Bass | Cellulose pulp 300 mm Bass reflex Frontal |
Frequency response | 40 Hz - 25 kHz +/- 3 dB |
Cutoff frequencies | 700 & 5000 Hz |
Sensitivity | 92 dB / 1m / 1w |
Impedance | 6 Ohms |
Recommended amplification | 50-200 W |
Power (RMS) | 200 W |
DIMENSIONS | |
Dimensions W × H × D | 420 × 730/700 × 339 mm |
Weight | 28 kg |
PACKAGING | |
Inner carton dimensions (L x H x D) | 845 x 535 x 455 mm |
Outer carton dimensions (L x H x D) | 875 x 555 x 475 mm |
Packaged per piece | |
Gross weight | 34.5 kg |
GOOD TO KNOW | |
Designed and developed in | France |
Break-in advice | 200 hours |
