MM7055

The MM7055 5-Channel Power Amplifier from Marantz is designed to deliver powerful multi-channel sound. This amplifier features a discrete amplification design for robust sonic delivery. Each channel in the amplifier delivers up to 140W of power at 8 ohms and 170W at 6 ohms.

 It is also equipped with balanced and unbalanced input options, allowing you to connect a wide variety of pre-amplifiers and processors. This amplifier is capable of efficiently driving stereo and 5-channel home entertainment systems.

Current Feedback Discrete Power Amplifier

The Marantz MM7055 includes a current feedback amplifier section that uses the same push-pull circuit from the Marantz SM-11S1 Hi-Fi power amp. This design improves stability and increases speed. It also delivers wide-range playback with greater detail. In addition, the current/voltage conversion stage uses a Wilson current mirror circuit. As a result, the amplifier achieves extended high-frequency response with very low distortion.

Large Power Transformer – Marantz MM7055 - 5 Channel

The final stage of the MM7055 uses LAPT high-efficiency power transistors, also found in the SM-11S1. These parts give instant power when needed and keep sound accurate. Moreover, the power section has a large transformer for steady performance. In addition, Marantz adds a 33,000 μF / 71 V×2 block condenser. As a result, the amplifier delivers stronger power and produces bold, clear sound.

High-Quality Cooling Design

The MM7055 uses a chimney-shaped heat sink that directs heat away from each channel. In addition, quiet cooling fans keep the system stable without noise.

A high-sensitivity temperature sensor controls the fans, adjusting their speed automatically based on the heat level.

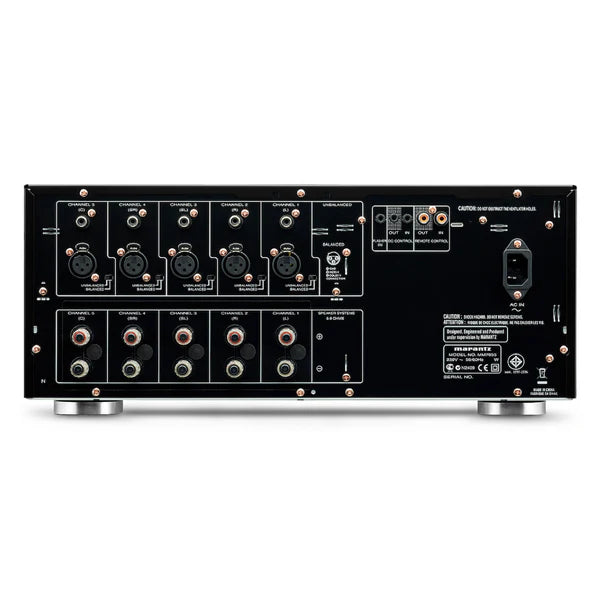

Balanced and Unbalanced Inputs - Marantz MM7055 - 5 Channel

Each channel includes both balanced and unbalanced inputs. Therefore, you can install the amplifier easily with different pre-amps and processors.

Custom-Installation Ready - Marantz MM7055 - 5 Channel

The MM7055 supports custom setups with an IR flasher input, DC trigger input, and output terminals.

Remote Power Control

When connected to a Marantz AV pre-amplifier such as the AV8003 or AV7005, the MM7055 powers on and off together with it. This setup reduces noise and keeps performance clean.

Additional Features – Marantz MM7055 - 5 Channel

• Firstly, the Marantz MM7055 uses reference-grade filter capacitors and high-speed output transistors.

• Secondly, it features gold-plated speaker terminals for strong and clean connections.

• In addition, it offers flasher input, DC trigger input/output, and RC-5 remote control support.

• Moreover, it comes with a detachable IEC320 2-pin power cord for easy setup.

• Furthermore, the iconic porthole display with blue lighting adds a stylish touch.

• Finally, the design supports high peak current and continuous low-impedance drive for stable power.
