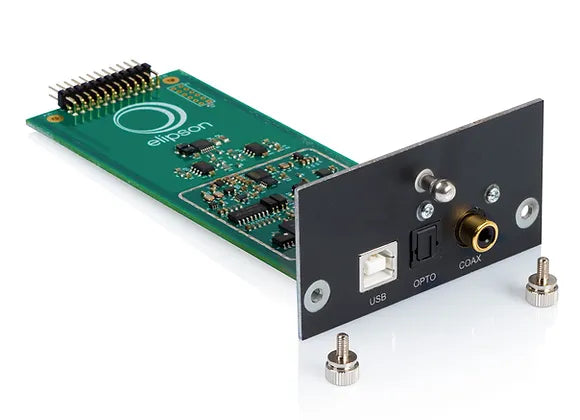

MDAC I : P1 DAC Card

MDAC I : P1 DAC Card

Rs. 93,000.00
Rs. 93,000.00
Sale Sold out
Shipping calculated at checkout.
View full details
  • Description
  • Specifications

Once easily inserted, your preamplifier or integrated automatically recognizes this module and takes its inputs into account.

Of audiophile design, it is compatible with PCM 32-bit / 384 kHz (192 kHz for coaxial S/PDIF) and DSD digital formats. So you benefit from the transparency and musicality of our electronics whether the signal is analog or digital.



TECHNICAL DATA

DAC stage (MDAC I) : S/PDIF & Asynchronous USB

Inputs : 1 x USB B + Toslink optical S/PDIF + S/PDIF

RCA coaxial

DAC ESS SABRE : 9028 Q2M

Audio formats supported

SPDIF : 32 bits at 192 kHz Coaxial 75 Ω - Toslink

USB : PCM 32 bits at 384 kHz, DSD (64 to 256)

Signal-to-noise ratio : 120 dB (A)

Max output voltage : 2 VRMS @ 0 dBFS



DIMENSIONS / WEIGHT

Dimensions : W x H x D: 78 x 40 x 147 mm

Weight : 70 g
