MM-7025

Channels

2

Power Output

• 8 ohms Rated: 140 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
• 6 ohms Rated: 170 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
• 6 ohms Maximum: 210 W per channel (1 kHz, 2-channels driven)

Output Bandwidth

5 Hz to 40 kHz (8 ohm load, 0.09 %)

Frequency Response

8 Hz to 100 kHz (1 W, 8 ohms) (± 3 dB)

Damping Factor

100

Input Sensitivity/Impedance

• 1.2 V / 22 k ohms (unbalanced)
• 2.4 V / 30 k ohms (balanced)

Signal-to-Noise Ratio

105 dB (IHF-A)

Voltage Amplification Level

29 dB

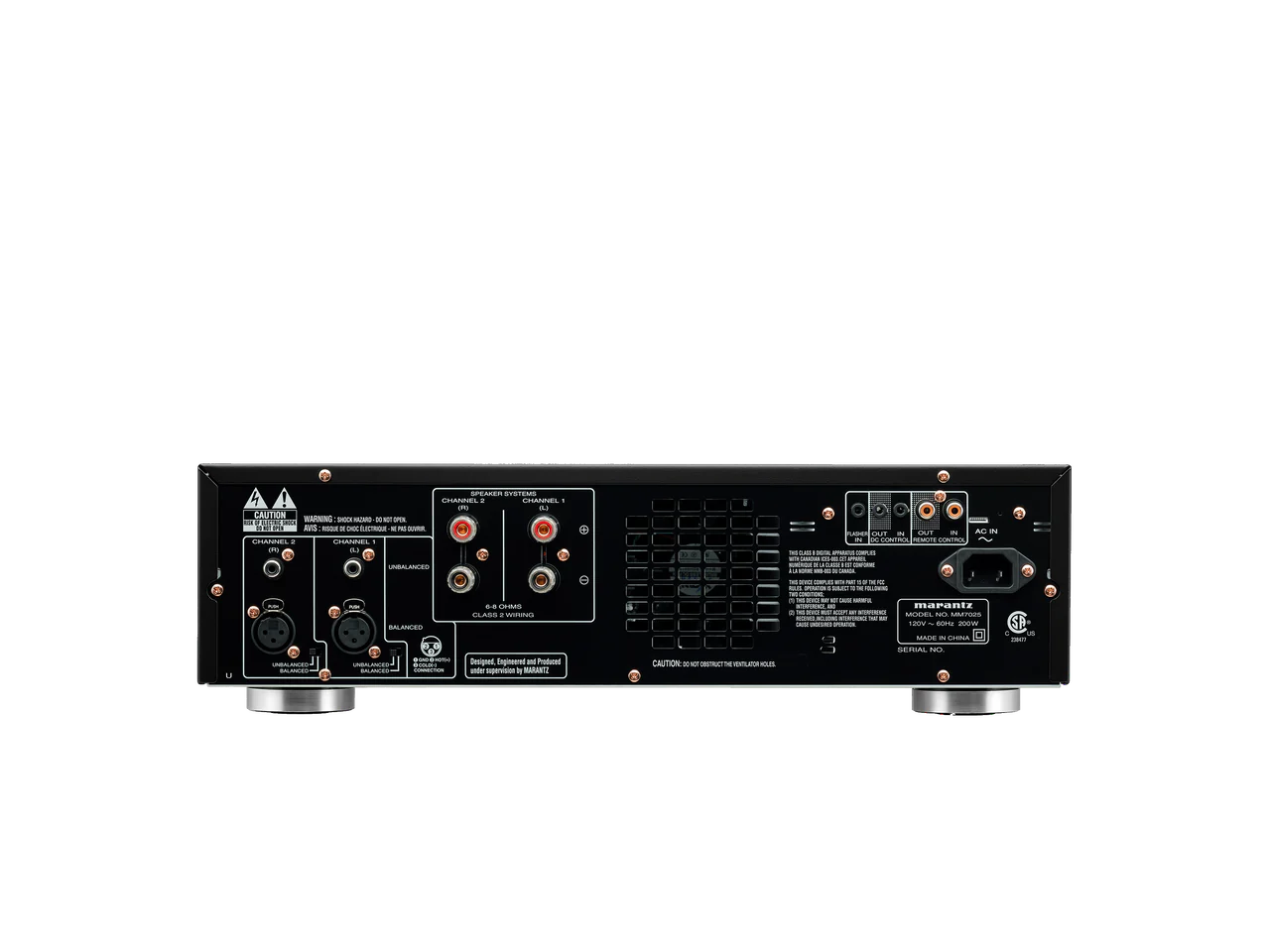

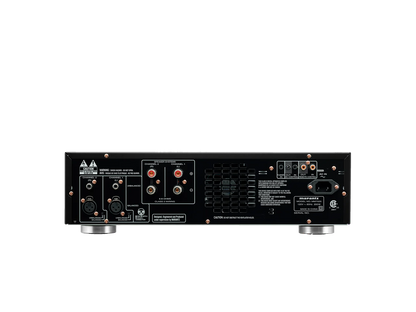

Input & Output

• 2 x Balanced inputs
• 2 x Unbalanced inputs
• 2 x Speaker channels
• 1 x IR flasher input
• 1 x DC control input
• 1 x DC control output
• 1 x Remote control input
• 1 x Remote control output

Switch

Balanced and unbalanced

Power Consumption

• Operational: 330 W
• Standby: 0.2 W

Dimensions (WxHxD)

17.3 x 5.0 x 13.9" / 440.0 x 126.0 x 352.0 mm

Weight

23.8 lb / 10.8 kg
