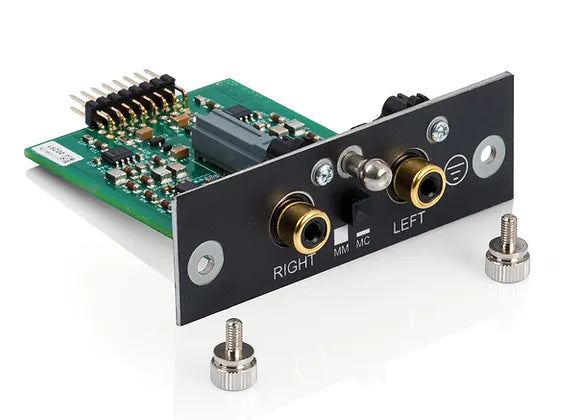

MPH II : P1 PHONO card

Rs. 66,000.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Once easily plugged in, your preamplifier or integrated circuit automatically recognizes this module and takes into account this Phono input.

Compatible with moving magnet (MM) or moving coil (MC) cartridges, benefiting from high performances such as high signal-to-noise ratio, high crosstalk, and wide bandwidth, the signal of your grooves will benefit from the transparency and musicality as for the other analog or digital inputs of our electronics.

TECHNICAL DATA

Phono RIAA stage (MPH II) MM & MC : Moving magnet and moving coil

Inputs : 1 x RCA Stereo + chassis

Input Amplification (1kHz) MM / MC : 41 dB / 61 dB

Input impedance MM / MC : 47 kΩ / 100 Ω

MM / MC Signal-to-Noise Ratio (@ 0 dBu out) : 76 dB (A) / 83 dB (A)

MM / MC input sensitivity : 7.5 mV / 750 mV at 0 dBu out

Bandwidth : 25 Hz - 80 kHz (@- 3 dB)

Crosstalk : < -100 dB

Output impedance : 600 Ω

Max output voltage MM / MC : 20 dBu (17,8 dBV)@ THD=1 %
