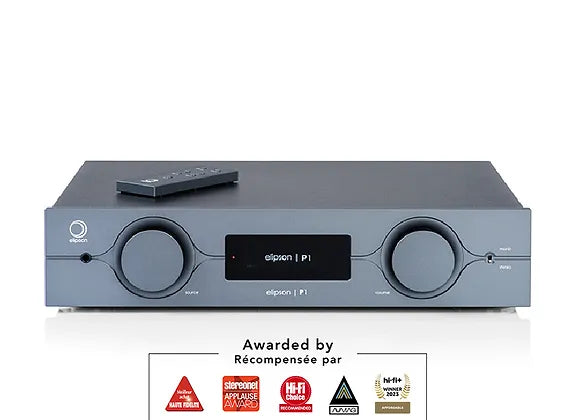

P1 PRE-AMPLIFIER

P1 PRE-AMPLIFIER

Regular price Rs. 268,000.00
Regular price Sale price Rs. 268,000.00
Sale Sold out
Shipping calculated at checkout.
View full details

The MPH II and MDAC I modules are included in the P1 FULL version.

Equipped with line inputs in its original configuration, it can in fact be completed with optional slot cards: one for the RIAA MM/MC Phono stages, as well as another module offering three digital inputs with a resolution of up to 32 bit sampled at 384 kHz.

This modularity, both for the analog and digital parts, is supported by internal software that can be "upgraded" by the user by means of an easily accessible USB socket. Elipson P1 is therefore a device of the present looking to the future.

Elegant and sober at the same time, the P1 is totally transparent thanks to the care given to these circuits allowing extremely low background noise and distortion.

Complete with its multiple possibilities, its interface via the front screen offers you perfect comfort of use, complemented by its personalized and elegant remote control.

The result is a reproduction of the tiniest details, an airy spatialization and perfect respect for silences.

Ā

LINE INPUT

Maximum output voltageĀ : 21 dBu (18.8 dBV) @ THD=1%.

CrosstalkĀ : < -100 dB up to 10 kHz

Input impedance (balanced/unbalanced) : 500 kΩ / 1 MΩ

Signal to noise ratioĀ : 102 dB (A) @ 1 V; Dynamic 120 dB

Total harmonic distortionĀ : < 0.001% over the entire audio band between -16 and +16 dBu

Bandwidth (Line)Ā : 2 Hz - 120 kHz @ - 3 dB

Output gain (balanced/unbalanced)Ā : 18 dB / 12 dB

Ā

Total number of inputsĀ : 3

Line inputsĀ : 2 x Line RCA + 1 x Sym XLR

OutputsĀ : 1 x RCA stereo (Asym) + 1 x XLR stereo (Sym) + sub + trigger out

Stereo/Mono modeĀ : Yes on front panel

Balance : Yes ± 6 dB

Ā

HEADPHONE OUTPUT

Output powerĀ : 150 mW / 32 W

Harmonic DistortionĀ : < 0,001 %

Signal to Noise RatioĀ : > 100 dB @ 10 mW / 32 Ī©

BandwidthĀ : 2 Hz - 120 kHz

Compatible impedancesĀ : 16 to 600 Ī©
