Perfect Volume

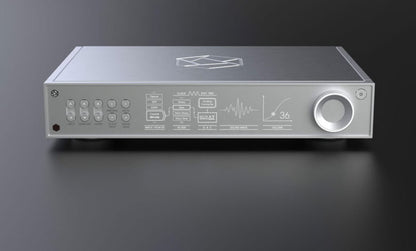

RD160 Absolute True fidelity DAC

Rs. 613,000.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The HiFi Rose RD160 is positioned as a flagship-level DAC offering what the brand calls “Absolute True Fidelity.” It is designed not just to convert digital audio with high precision, but to do so in a way that preserves the character and subtlety of the original recording. To achieve that, it uses a dual‑DAC architecture (two AK4499EXEQ chips) combined with AK4191EQ processing, giving it very high-resolution conversion capabilities.

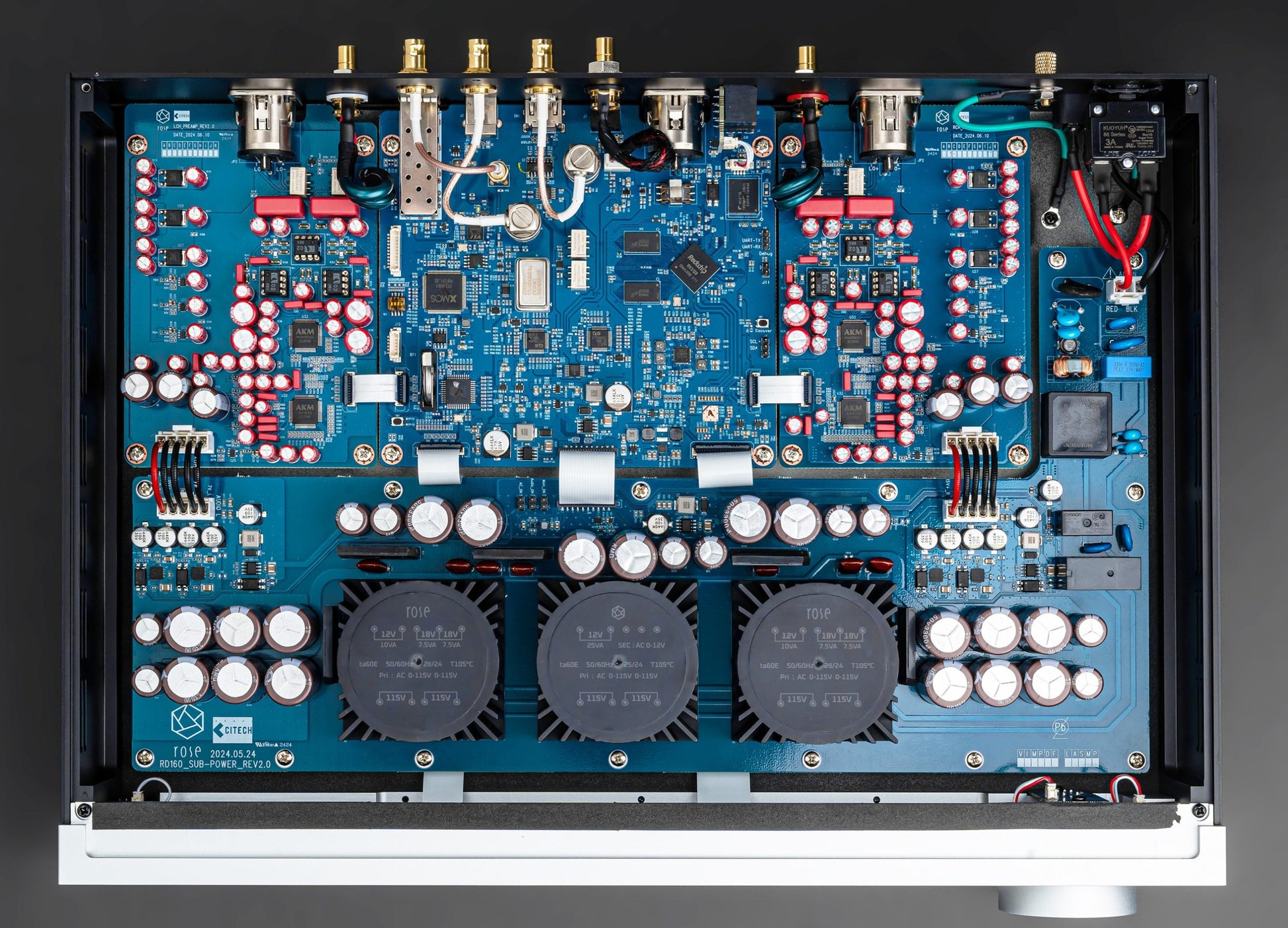

Its internal design employs an isolated module architecture (ROSE CIM™), which means the digital input stage and the analog output stage are physically separated to reduce interference and maintain signal purity. Power-wise, the RD160 uses three independent linear toroidal power supplies — one for the digital section and one for each analog channel — to minimize crosstalk and noise, resulting in very clean dynamics and excellent resolution.

A high-precision OCXO clock ensures very stable timing, which helps lower jitter and improves overall coherence. On the analog side, the RD160 supports both balanced (XLR) and unbalanced (RCA) outputs. It also offers a choice of upsampling and digital filter options to tailor the sound to your preference — including “Sharp,” “Slow,” “Short Sharp,” “Short Slow,” “Super Slow,” and “Low Short.”

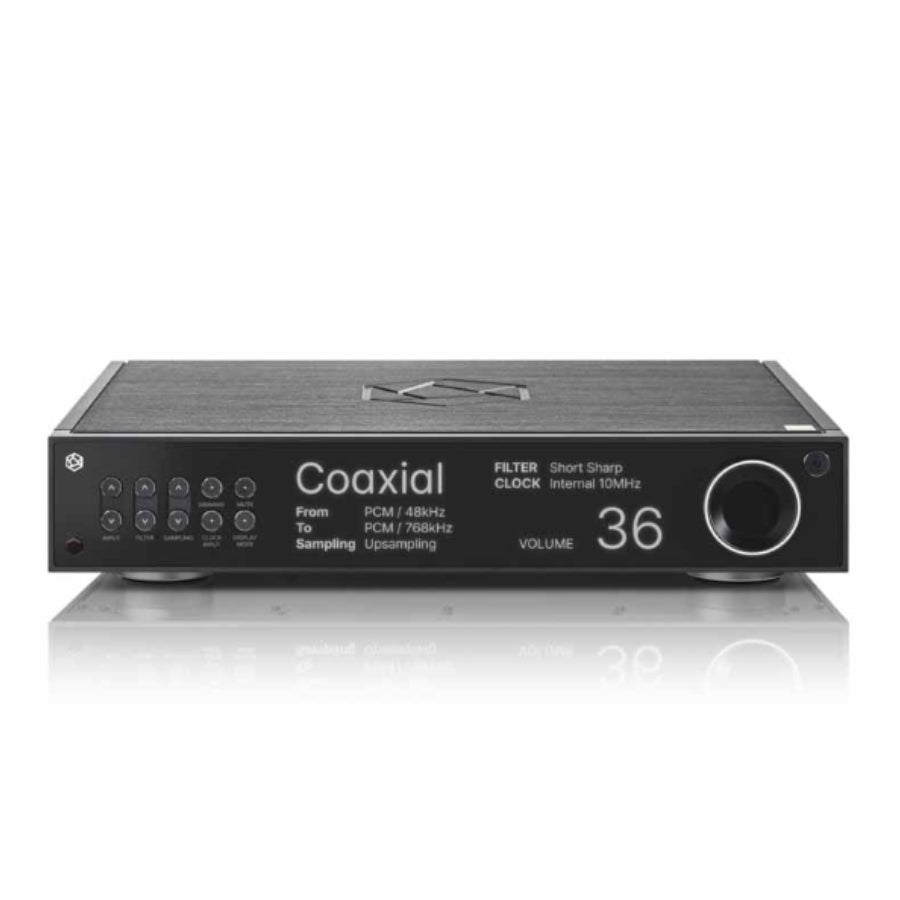

The front panel hides a dual AMOLED display (when activated) that shows the current input, sampling rate, filter settings, and more. Its chassis is made of solid aluminum and rust-proof steel, with heat-sink side panels to manage temperature, and the design feels very robust and premium.

In terms of connectivity, the RD160 provides a wide array of inputs: USB-B, a USB SFP module (for fiber), HDMI I²S, two coaxial (RCA + BNC), optical, and AES/EBU. It even has external clock input (10 MHz) via BNC (75Ω) and SMA (50Ω). The unit is controlled with a 38 kHz IR remote.

Overall, the RD160 aims to deliver extremely high fidelity, with a focus on ultra-low noise, very precise timing, and flexible digital handling, making it a serious choice for audiophiles who care deeply about DAC performance and sound purity.

The HiFi Rose RD160 is built around a dual AKM DAC architecture, combining two AK4499EXEQ DAC chips with two AK4191EQ processors, providing ultra-high-resolution digital-to-analog conversion. Power is supplied by three independent reference-level linear toroidal power units, one for the digital section and one for each analog channel, which minimizes interference and ensures clean dynamics. Timing is maintained with a high-precision OCXO clock to reduce jitter. The DAC supports a wide range of digital inputs, including a USB SFP module, USB 2.0 Type-B, HDMI I²S, coaxial RCA and BNC, optical, and AES/EBU. Additionally, it has an external clock input at 10 MHz via BNC and SMA connectors. The analog outputs are available in both balanced XLR and unbalanced RCA, with adjustable output levels from 1 V up to 9 V. The RD160 provides multiple PCM filter options, including Sharp, Slow, Short Sharp, Short Slow, Super Slow, and Low Short, allowing customization of the sound profile.

It supports PCM playback from 8 kHz up to 768 kHz at 8 to 32 bits and native DSD formats up to DSD512. Its analog performance includes an output level of 4.5 Vrms for RCA and 9 Vrms for XLR, with a total harmonic distortion plus noise (THD+N) of 0.005% at 1 kHz. Signal-to-noise ratio is 124 dB on both RCA and XLR, with residual noise at 0.3 mV for RCA and 0.4 mV for XLR, while stereo crosstalk is measured at –124 dB. The internal processing is handled by an RK3128 quad-core Cortex-A7 CPU with 1 GB of DDR3 RAM and 8 GB of eMMC flash storage. Power consumption is approximately 30 W during playback and 0.3 W in standby, compatible with AC 110–120V or 220–240V at 50/60 Hz. The frequency response ranges from 10 Hz to 20 kHz within –0.3 dB, extending up to approximately 73 kHz at –3 dB.

The RD160 features a hidden dual AMOLED display that shows input, sampling rate, and filter settings while maintaining a clean front panel when off. Its chassis is constructed from solid aluminum with rust-proof steel and heat-sink side panels, providing durability and low vibration. The unit measures 430 mm wide, 330 mm deep, and 88 mm high, weighing approximately 10 kg. It includes a 38 kHz IR remote and is available in either silver or black finishes. This combination of advanced DAC architecture, independent power supplies, customizable digital filters, and robust construction makes the RD160 a reference-level solution for audiophiles seeking precise, pure, and high-fidelity digital-to-analog conversion.
