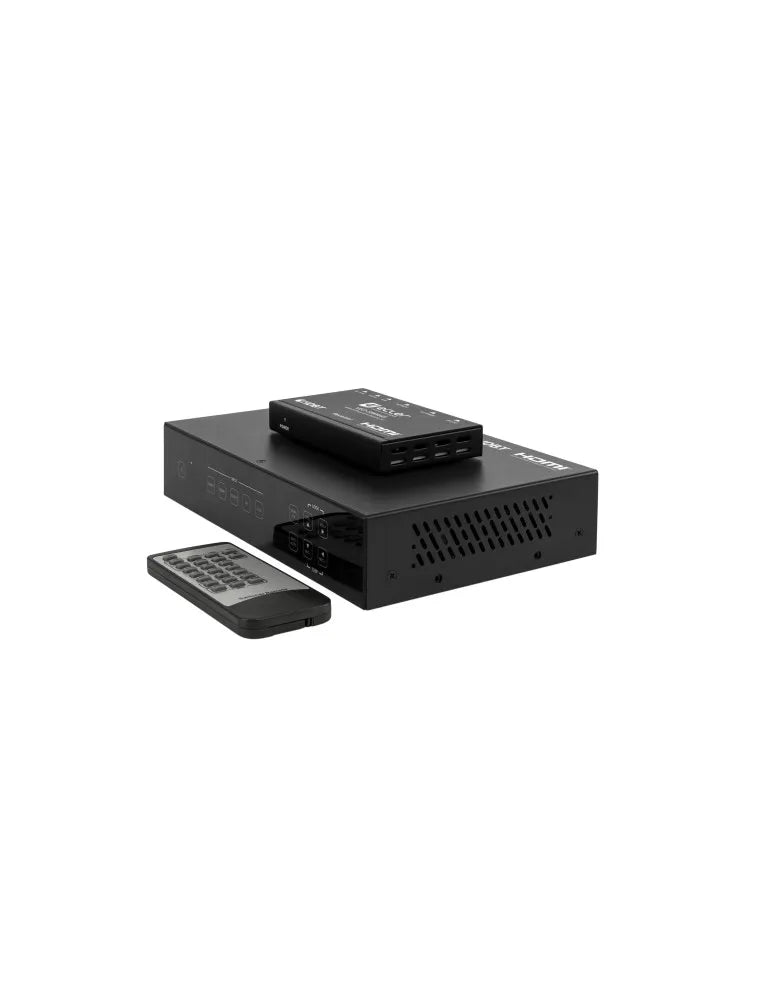

VEO-SWM45

VEO-SWM45 is a compact 4K presentation switcher and scaler that supports 3 HDMI 2.0 ports, VGA and
a DisplayPort 1.2a sources with HDMI and HDBaseT outputs. An integrated audio matrix allows to
embed 5 unbalanced stereo signals and route them independently to the output. Featuring a
microphone/line input, with adjustable ducker and selectable phantom power, audio signals can be
mixed with the source audio and sent to the amplifier through the line-level output. With simple,
flexible, integration-friendly control options (including front panel, built in Web UI, contact closure
panels, RS-232, telnet and IR remote). Dimensions (WxHxD) 220 x 44 x 220 mm / 8.66” x 1.76” x 8.66”.
Weight 1,25 Kg / 2.75 lb
